CNS8 / SP-8 Series
Product model:
Product name
Insulation class:
Product net weight:
Water outlet interface:
Product certification:
Application field:
Brand:

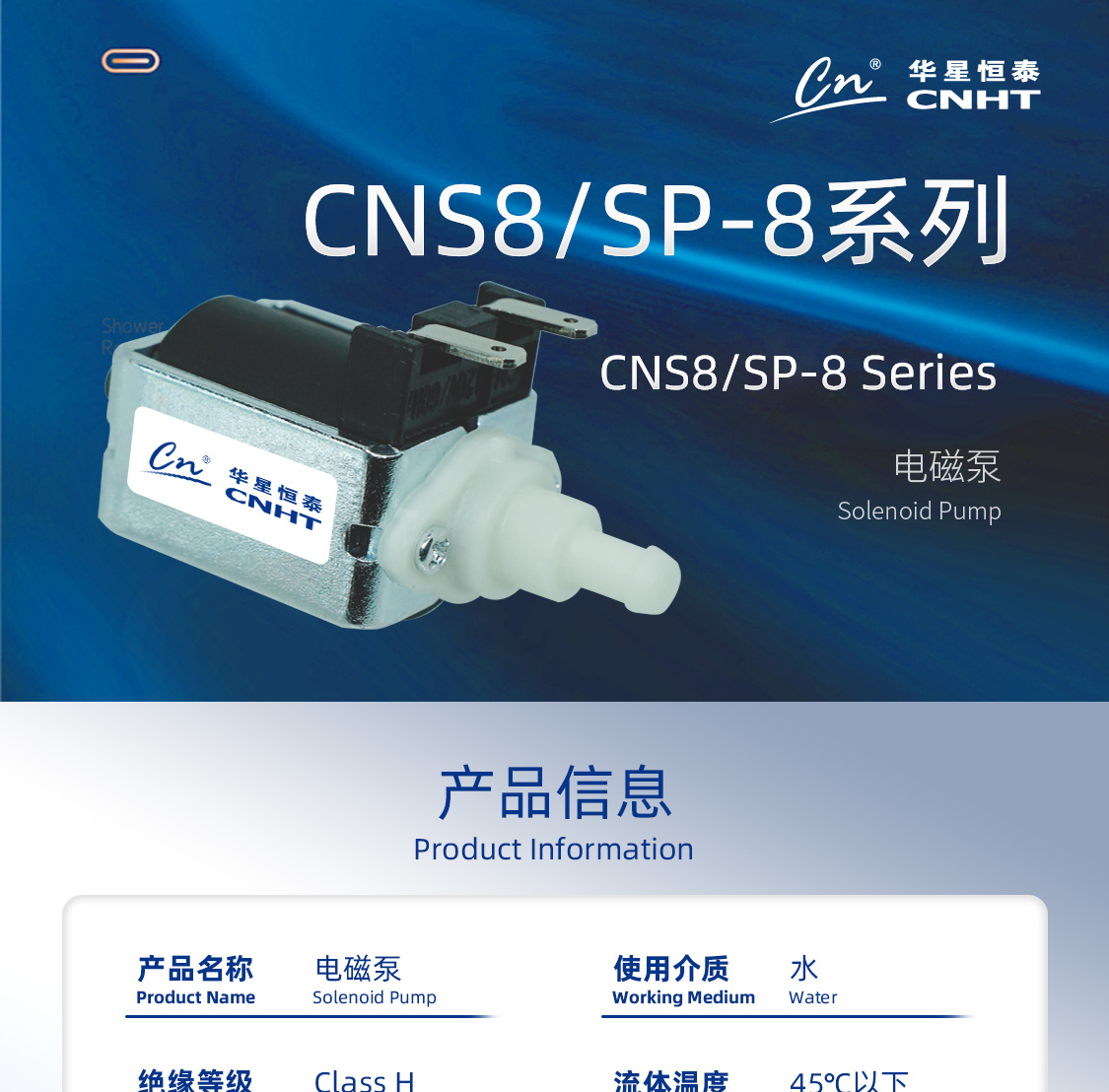

CNS8 / SP-8 SERIES
Solenoid Pump
Class H
30g
Barb port
RoHS、REACH、FDA、UL、TUV、CQC
Handheld Steam Brush、Electric iron
CN
Product Details
CNS8 series is a compact and versatile solenoid water pump, specially developed for handheld steam brushes and electric irons. With five models (CNS8 01–05) offering different flow rates, it caters to diverse small steam appliance needs.

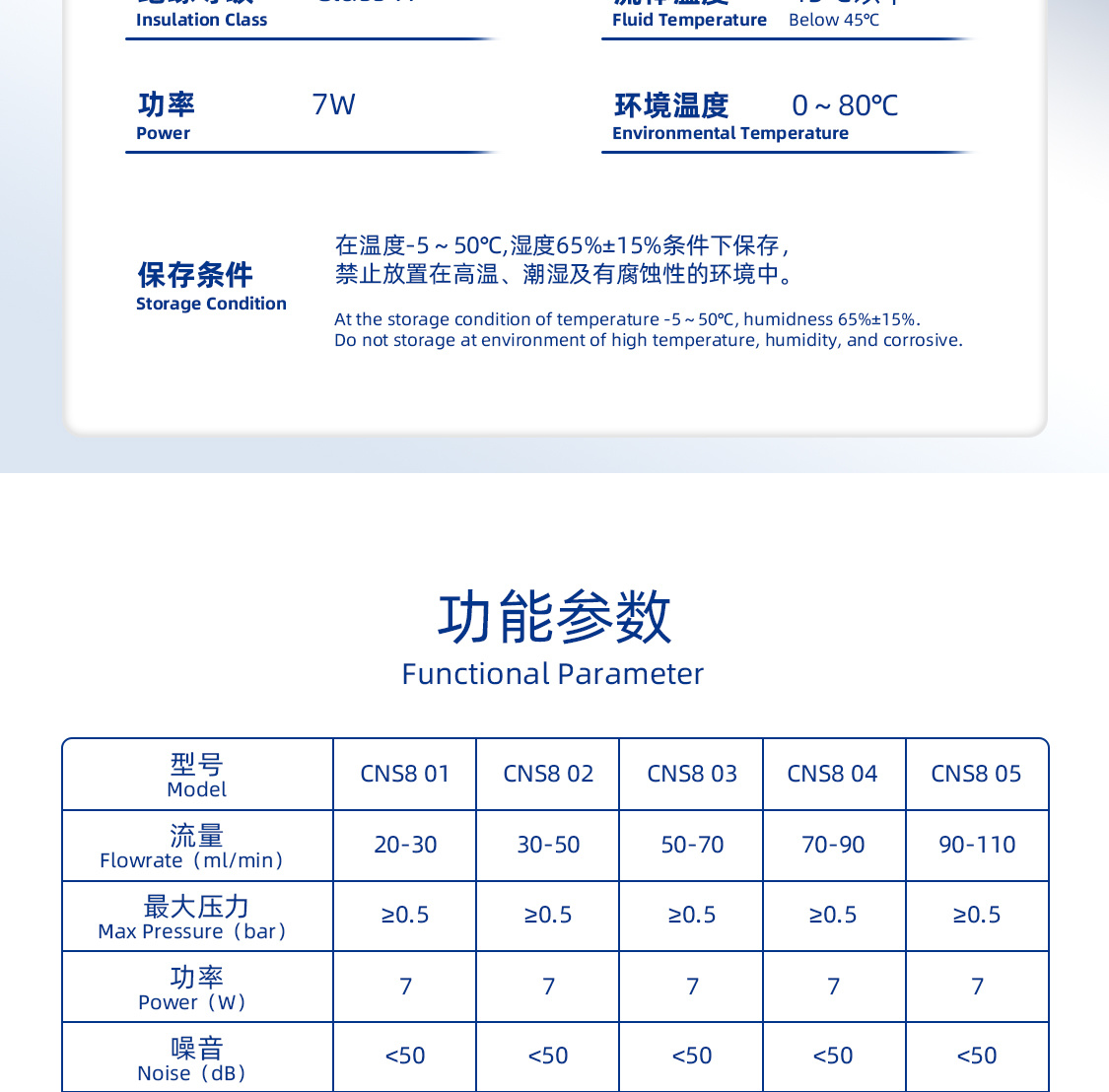

Featuring Class H insulation, the pump provides excellent heat resistance and electrical safety, supporting continuous 100% duty cycle operation. Each variant operates at 7W power and maintains a consistent max pressure ≥0.5 bar, ensuring reliable water delivery.

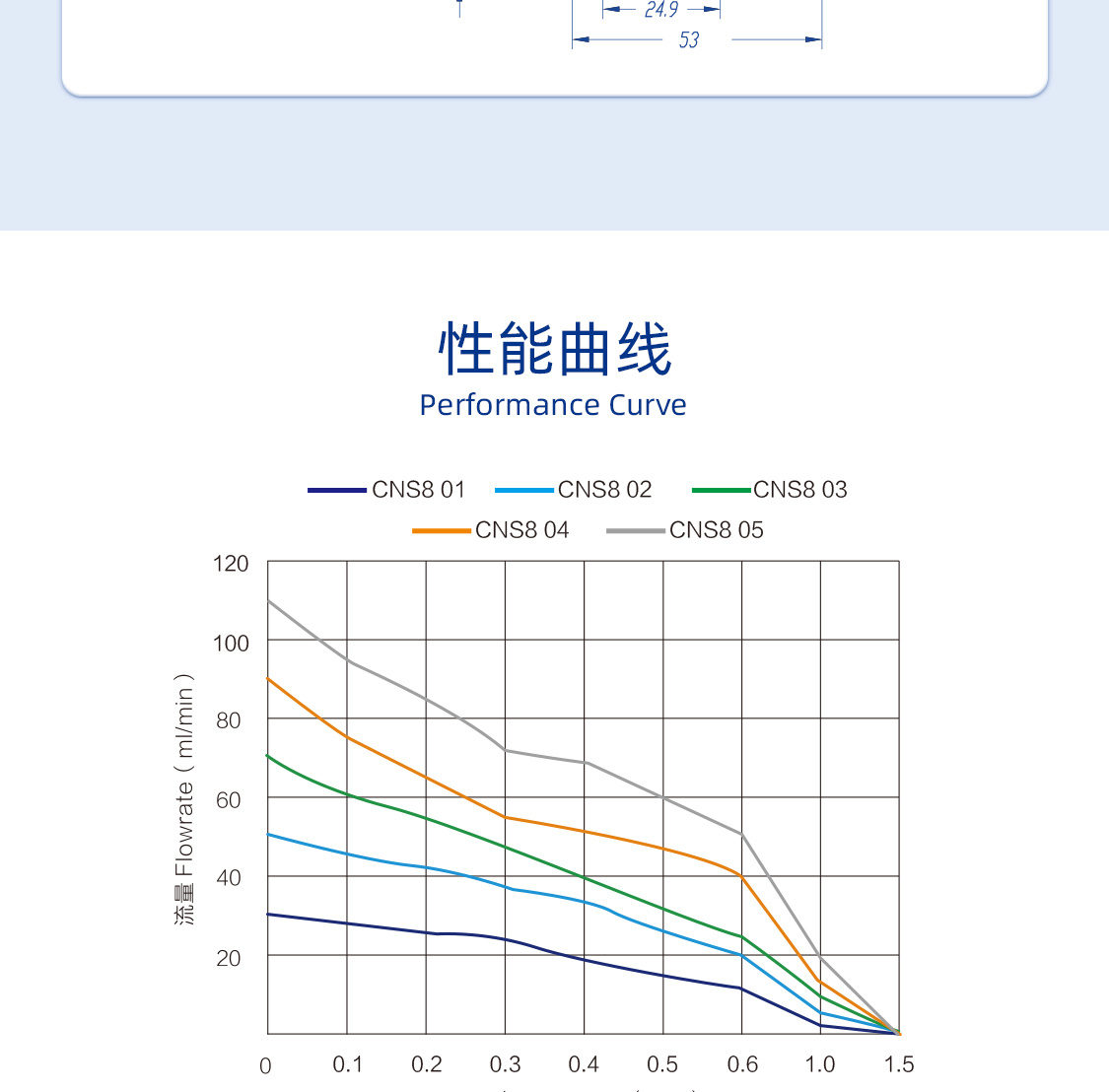

The series offers adjustable flow ranges: 20–30 ml/min, 30–50 ml/min, 50–70 ml/min, 70–90 ml/min, and 90–110 ml/min, allowing precise matching to different device requirements. Noise level is controlled below <50 dB for quiet operation.
Certified with RoHS, REACH, FDA, UL, TUV, and CQC, the CNS8 meets strict global safety and environmental standards. It supports multiple voltage specifications: AC 220–240V/50–60Hz, 120V/60Hz, and 100V/50–60Hz, making it suitable for worldwide use. Compact, reliable, and low-noise, it is an ideal choice for small steam household appliances.
