CNS9 Series
Product model:
Product name
Insulation class:
Product net weight:
Water outlet interface:
Product certification:
Application field:
Brand:
CNS9 SERIES
Solenoid Diaphragm Pump
Class H
35g
Barb port
RoHS、REACH、FDA、UL、TUV、CQC

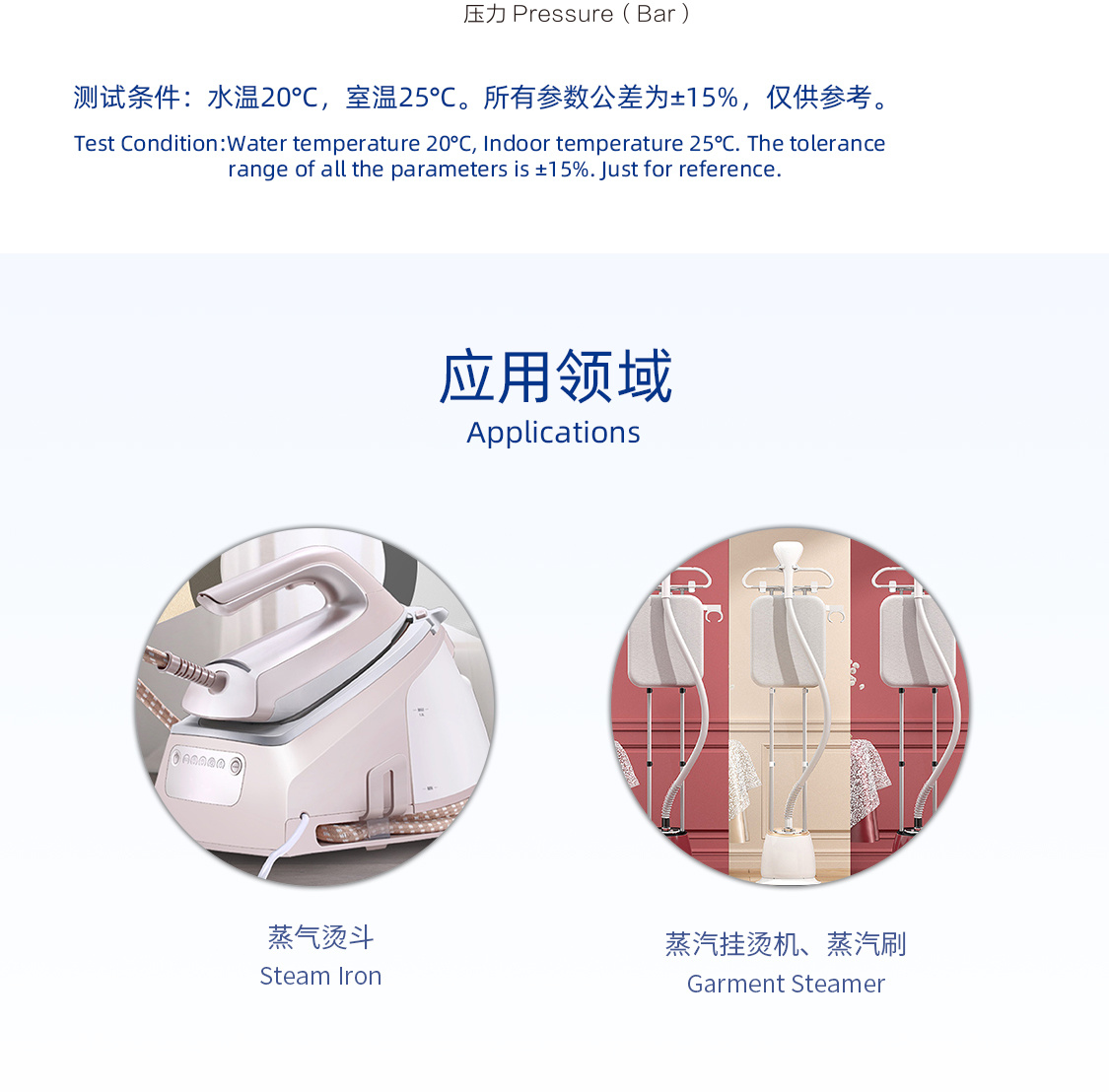

Handheld Steam Brush、Electric iron
CN
Product Details

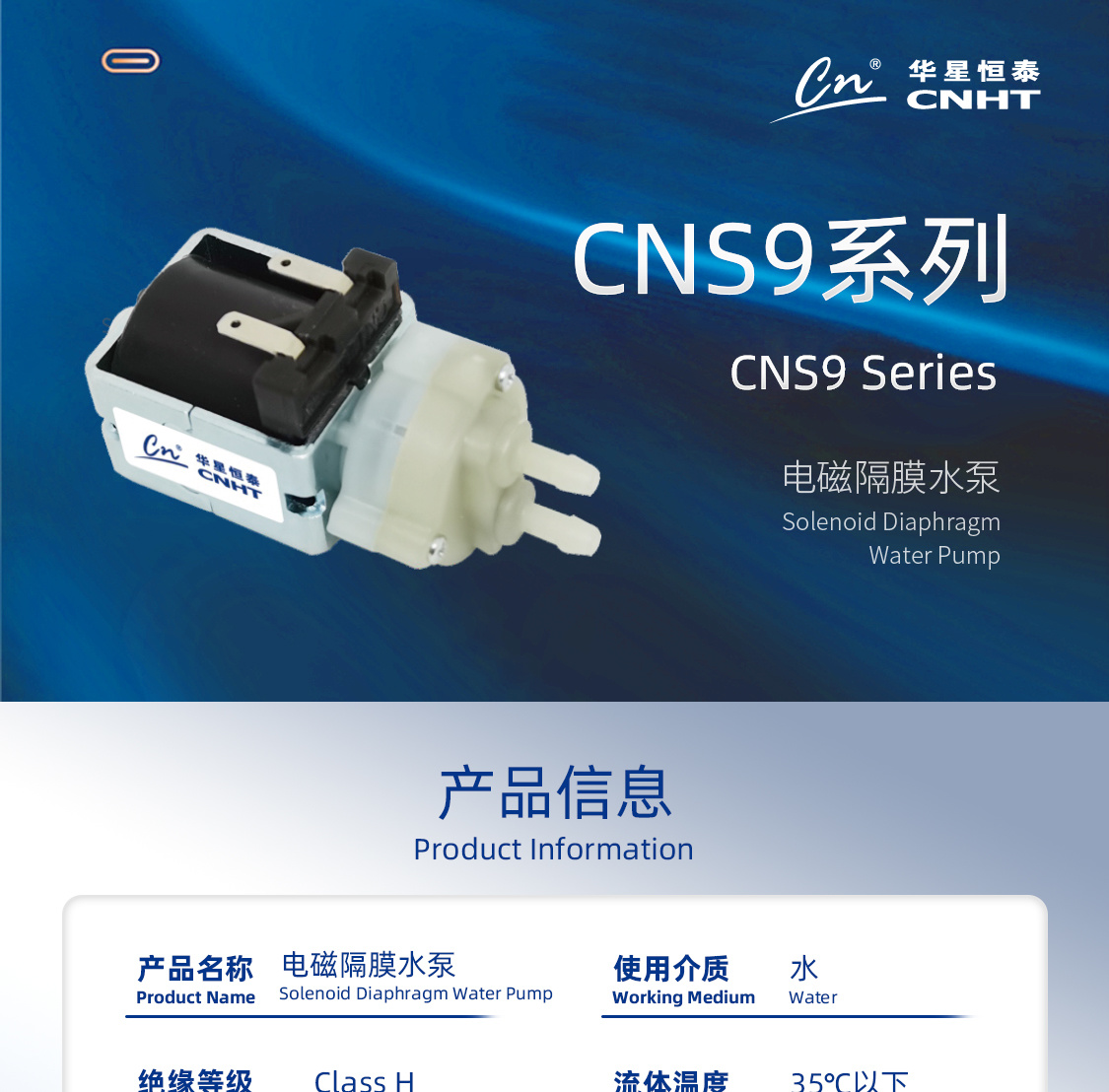

CNS9 series is a high‑performance miniature solenoid diaphragm water pump, specially designed for steam irons, steam brushes and garment steamers. It features compact structure, light weight, high safety and stable water output.
With Class H insulation, the pump offers excellent heat resistance and electrical safety, suitable for long‑term continuous work. It weighs only 35g, with a Barb port for quick connection, easy installation and reliable sealing.

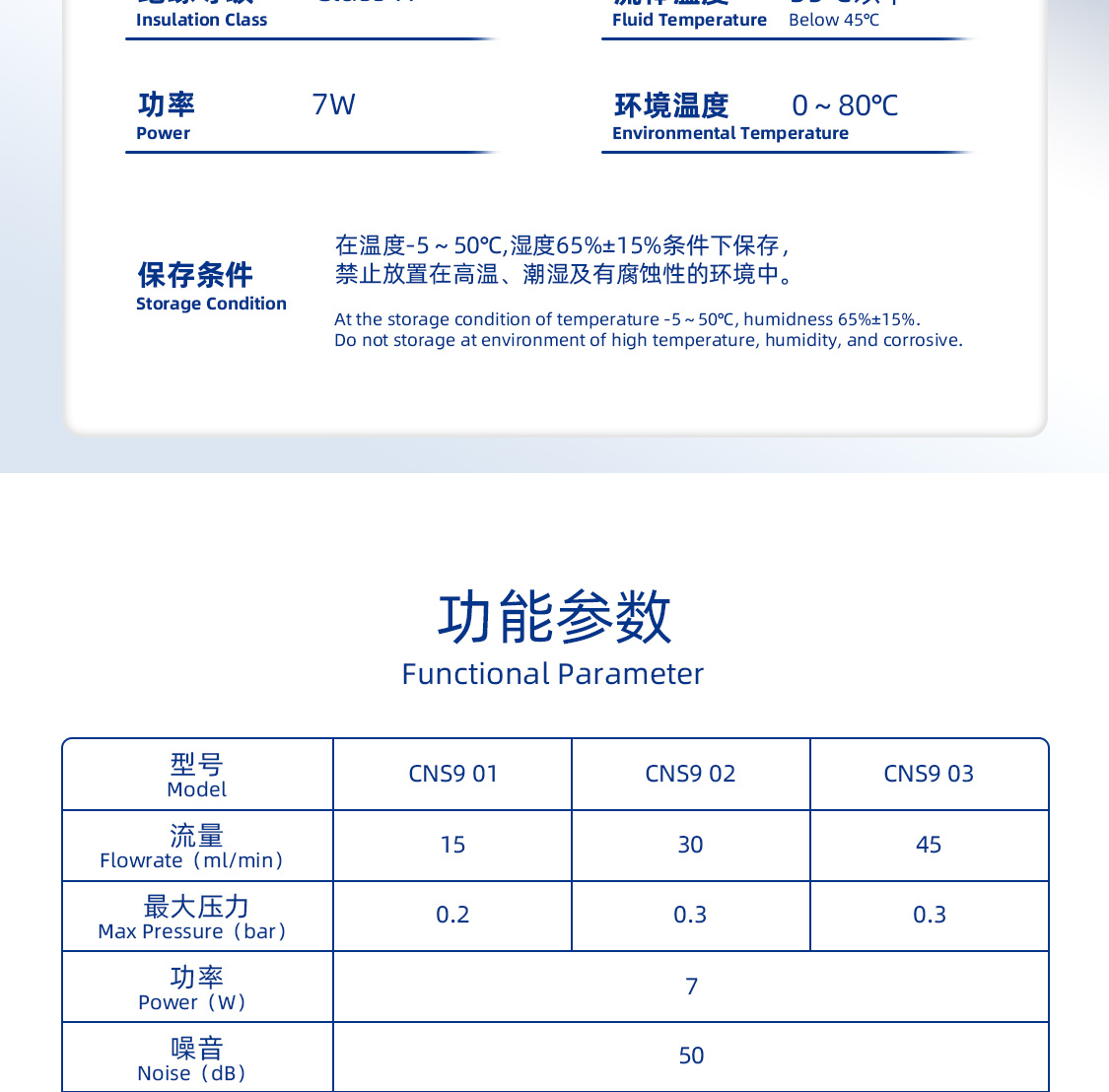

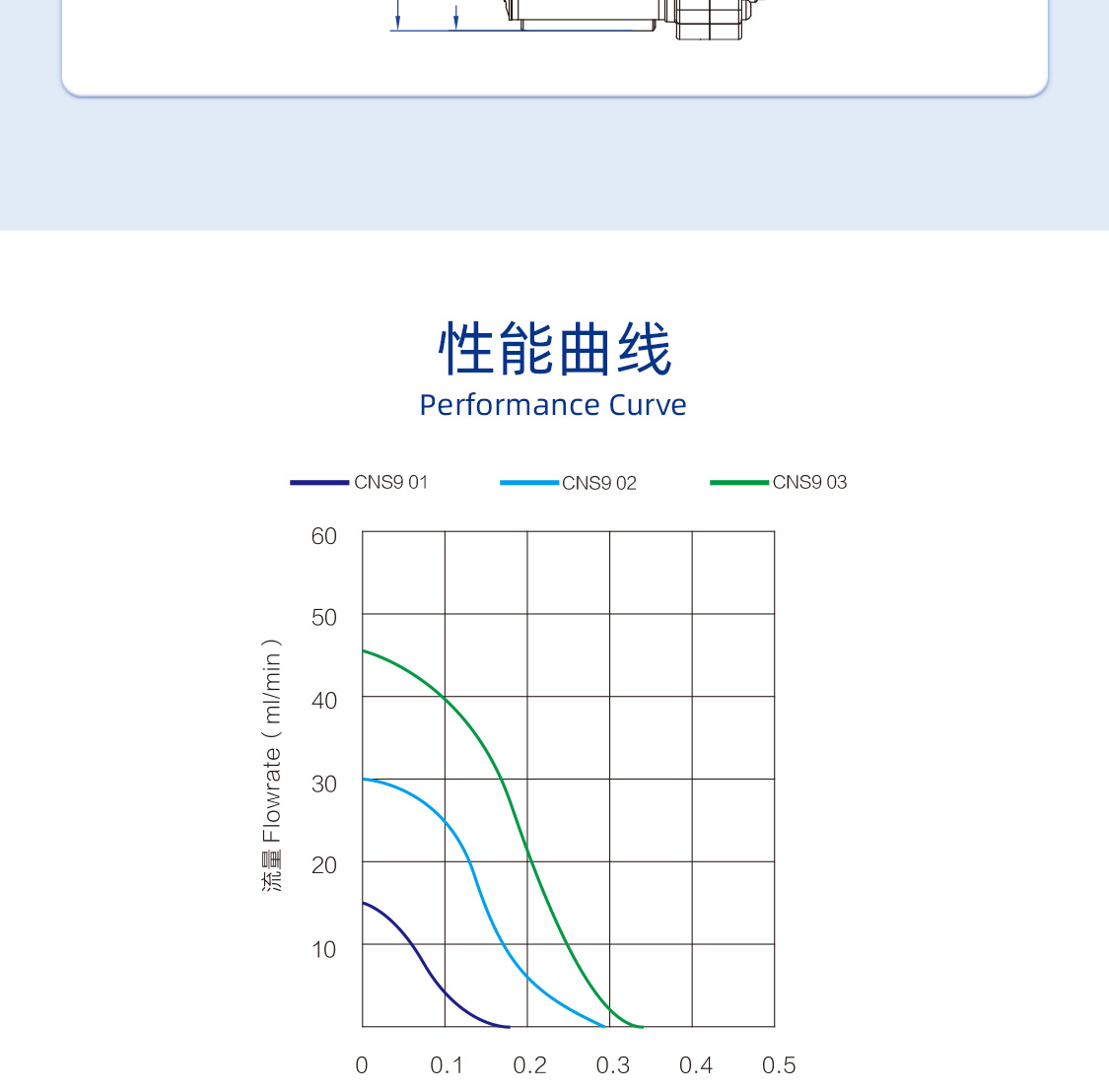

Certified by UL, TUV and CQC, CNS9 meets international safety standards. It operates at 7W power, with flow rates of 15/30/45 ml/min, max pressure up to 0.3 bar, noise below 50 dB, and supports AC 100–240V input. Small, quiet and durable, it is an ideal choice for small steam household appliances.
